Sliding Doors

EAD30

EAD30 brings superior strength, strong wear resistance, beauty and elegance together. Its sleek profiles can match a broad range of finishes for precise architectural integration.

Overview

Technical specifications

Key values from the Erichsen product documentation for EAD30.

Technical specifications for EAD30
Operator height	100 mm
Operator depth	174 mm
Gear motor power	100 W
Hold-open time	0 - 30 s, adjustable
Opening speed	Variable up to 1.1 m/s, double leaves
Closing speed	Variable up to 1.1 m/s, double leaves
Ambient temperature	-15 to +50 C
Maximum leaf weight	1 x 200 kg / 2 x 150 kg
Track profile	Stainless steel
Input power	230 V / 92 VA
Protection class	IP20

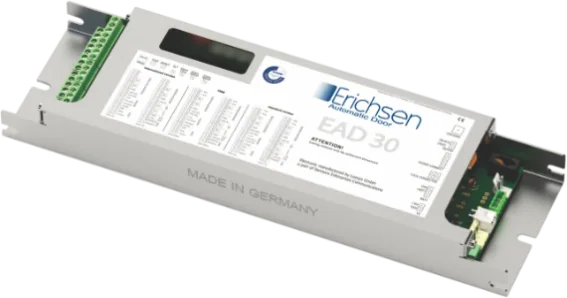

Control Unit

EAD30 control boards use advanced German engineering and are designed to meet EU and German requirements including machinery, EMC and low-voltage directives, plus standards such as DIN 18650, EN 16005 and EN ISO 13849.

Gear Motor

EAD30 motors are fully made in Germany. The 100 W brushed DC motors are designed for lifetime reliability, high efficiency and a muted operating sound.

Track Profile

EAD30 series plays the most hauntingly beautiful music: smooth silence. By making use of stainless steel or detachable aluminum track profiles together with rubber profiles, Erichsen presents trustworthy, hard-wearing entry solutions with smooth, hushed movement.

When Erichsen's detachable aluminum track profiles are worn out after a lengthy period of time, they can easily be replaced, which costs much less in comparison with replacing the whole rail.

Since Erichsen's stainless steel track profiles are rust-proof and anti-abrasion, they will never need to be replaced. This will be a great value for your money during time and will prevent possible complications when replacing profiles.
